Brake Drum/Disc Lathe T8445 Dual Purpose Brake Disc and Drum Repair Machine Multifunctional Maintenance Lathe Turning Machine Suitable for Small and Medium Vehicles, 110V 60Hz

Product Parameters Model: T8445 Machine voltage: 110V 60Hz Motor power: 1.1KW Processing diameter range: Brake drum: 180-450mm (7.1-17.7") Brake disc: ≤400mm (15.7") Rotating speed of workpiece: 30/ 52/ 85r/min Maximum travel of tool: 170mm (6.7") Feeding capacity: 0.16mm/r Machine size: 100×98×110cm (39.4*38.6*43.3") Net weight: 264kg (582LBS) One package includes Brake Drum/Disc Lathe *1 Tool Box *1 Precautions 1. This machine with the standard configuration can process the brake discs and drums of small and medium vehicles 2. Install the brake disc and brake drum correctly according to the schematic diagram in the manual 3. Please read the instruction manual carefully before use 4. Before using the lathe, add mechanical oil to the lathe first, and replace the mechanical oil every 3-5 months, after cleaning the lathe daily, coat the guide rail and spindles with mechanical oil 5. There is no plug on the lathe motor, please find the professional to help connect the lathe to the power supply

• Dual-Purpose Brake Drum/Brake Disc: This lathe is equipped with two types of devices: brake drum and brake disc, the processing diameter range of brake drum is 180-450mm (7.1-17.7"), and the processing diameter range of brake disc is 400mm (15.7"), which can achieve automatic cutting in both directions and provide mechanical limit

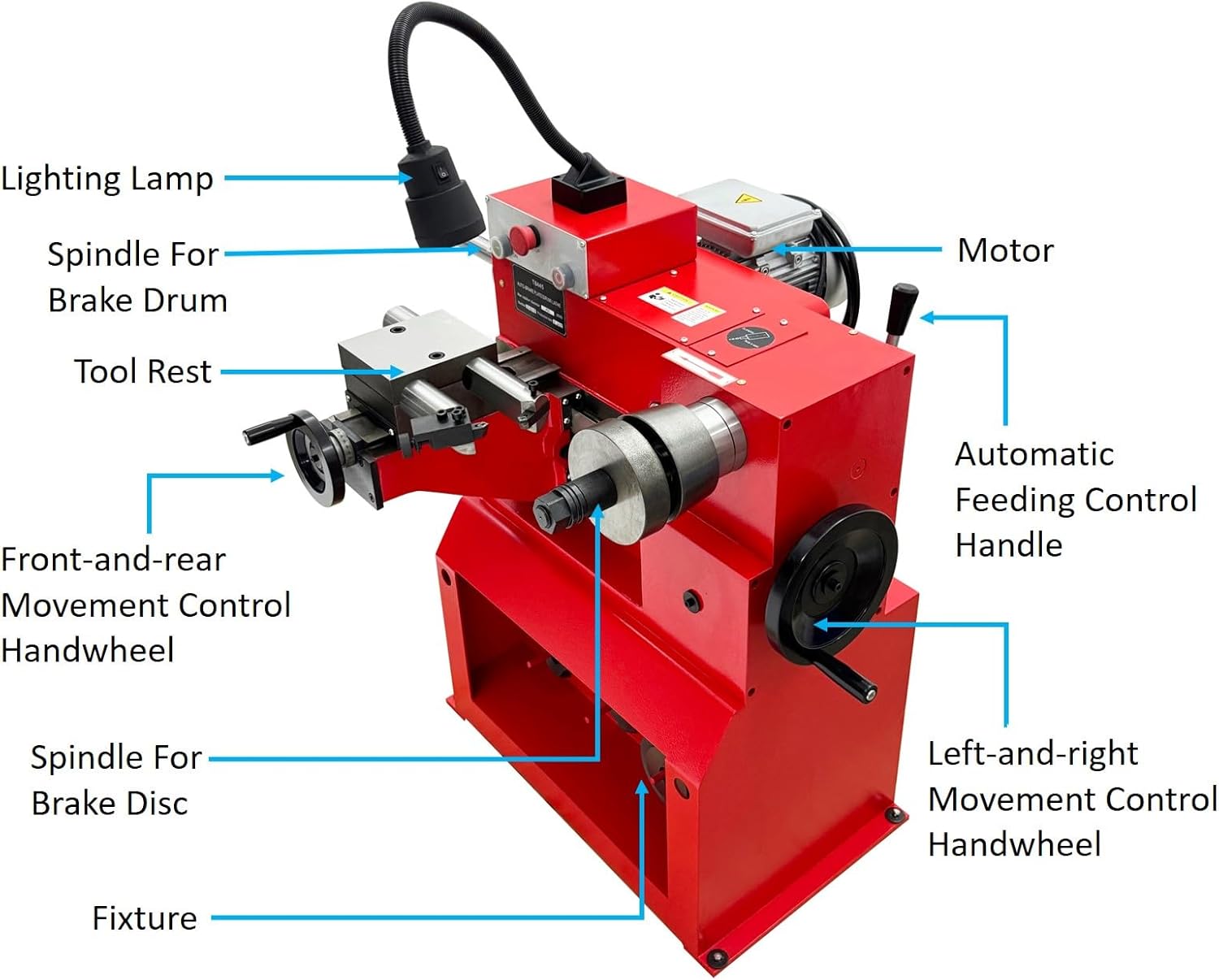

• Clear Structural Division: Each side of the lathe has a spindle, which is used to install the brake drum (left) and the brake disc (right) respectively, this design effectively meets the different processing requirements of the brake drum and the brake disc, and greatly improves the processing efficiency and quality
• Precise Processing: The tool rest is high in structural strength and processing precision, can achieve efficient machining of brake discs and drums, additionally, the tool post can be controlled to move in the front-and-rear direction and the left-and-right directions through different handwheels, thus providing higher control accuracy and better processing effect

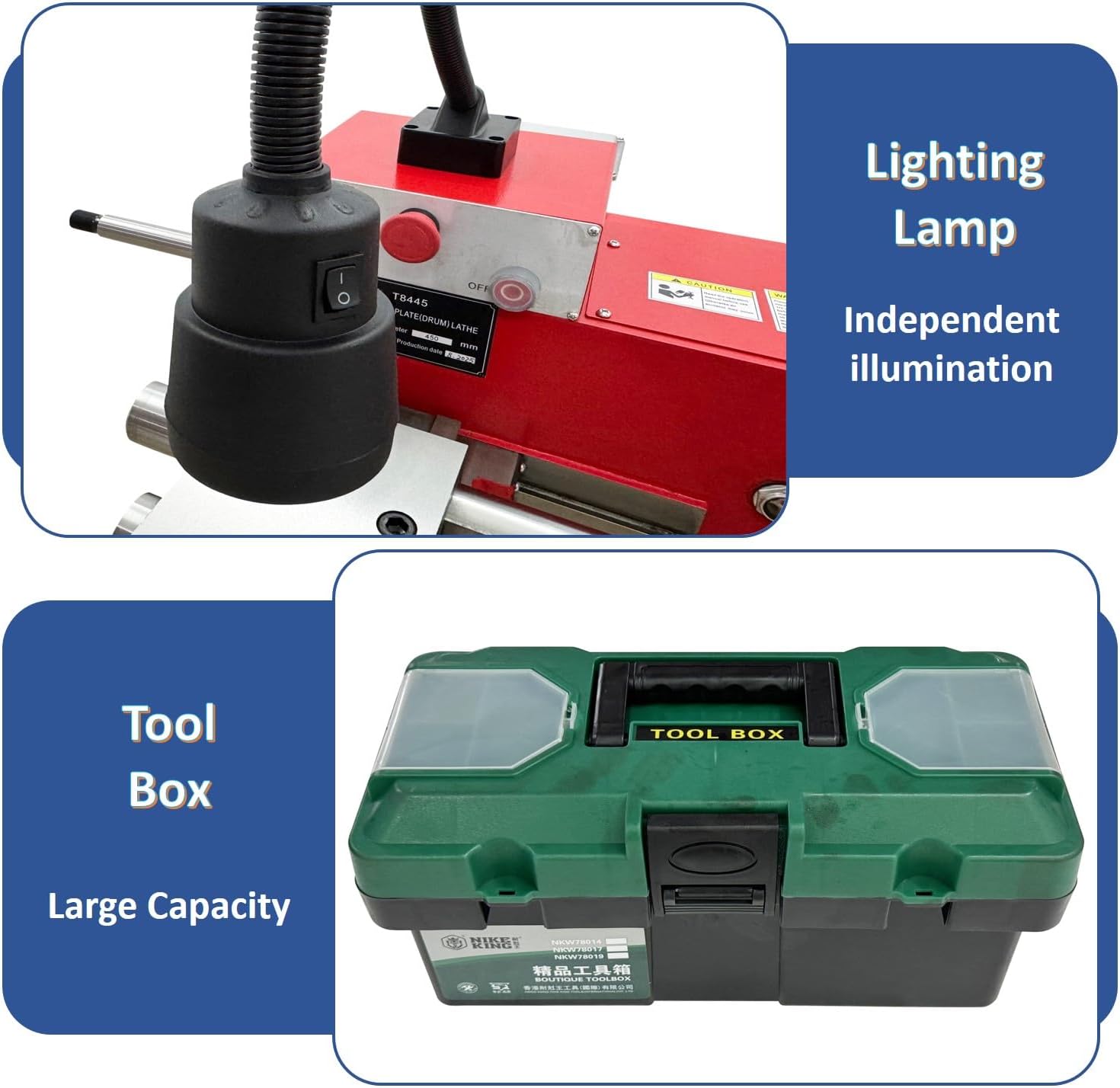

• Safe Protection: The "ON" switch and "OFF" switch are arranged separately and operate independently, and the emergency stop switch can stop the lathe in case of emergency, ensuring the safety of the machine and the operator, moreover, there is a LED lighting above the lathe, designed for real-time observation of the processing status, ensuring a bright processing environment
• Multi-Purpose Use: With the features of high precision, high efficiency, high automation and high strength, the T8445 brake drum/disc lathe is suitable for repairing brake discs and brake drums of small and medium vehicles
